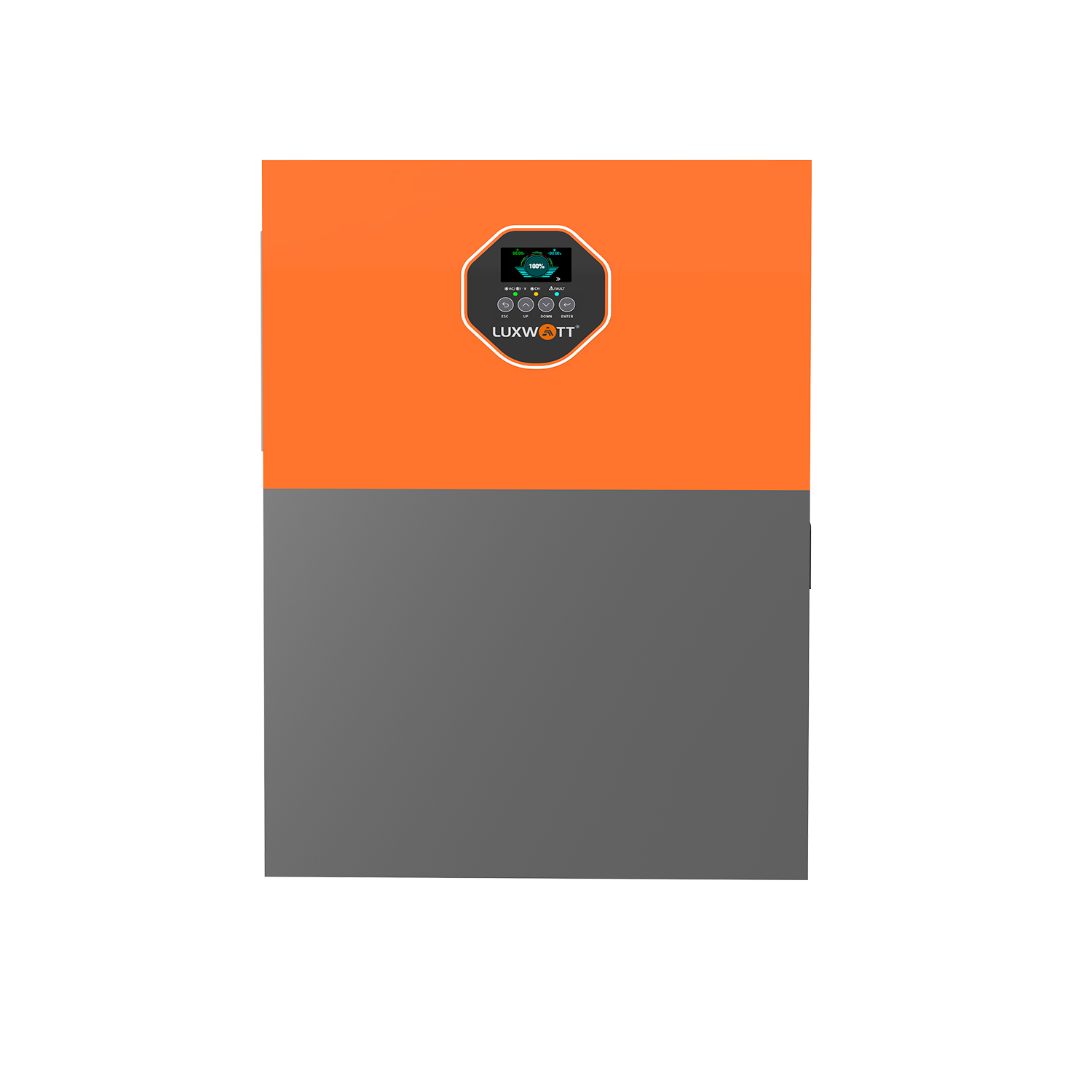

LV-ONE11L36 3.84kWh
LV-ONE11L36 3.84kWh
1.BMS with multi-protection.
2.Real-time monitoring via comms.

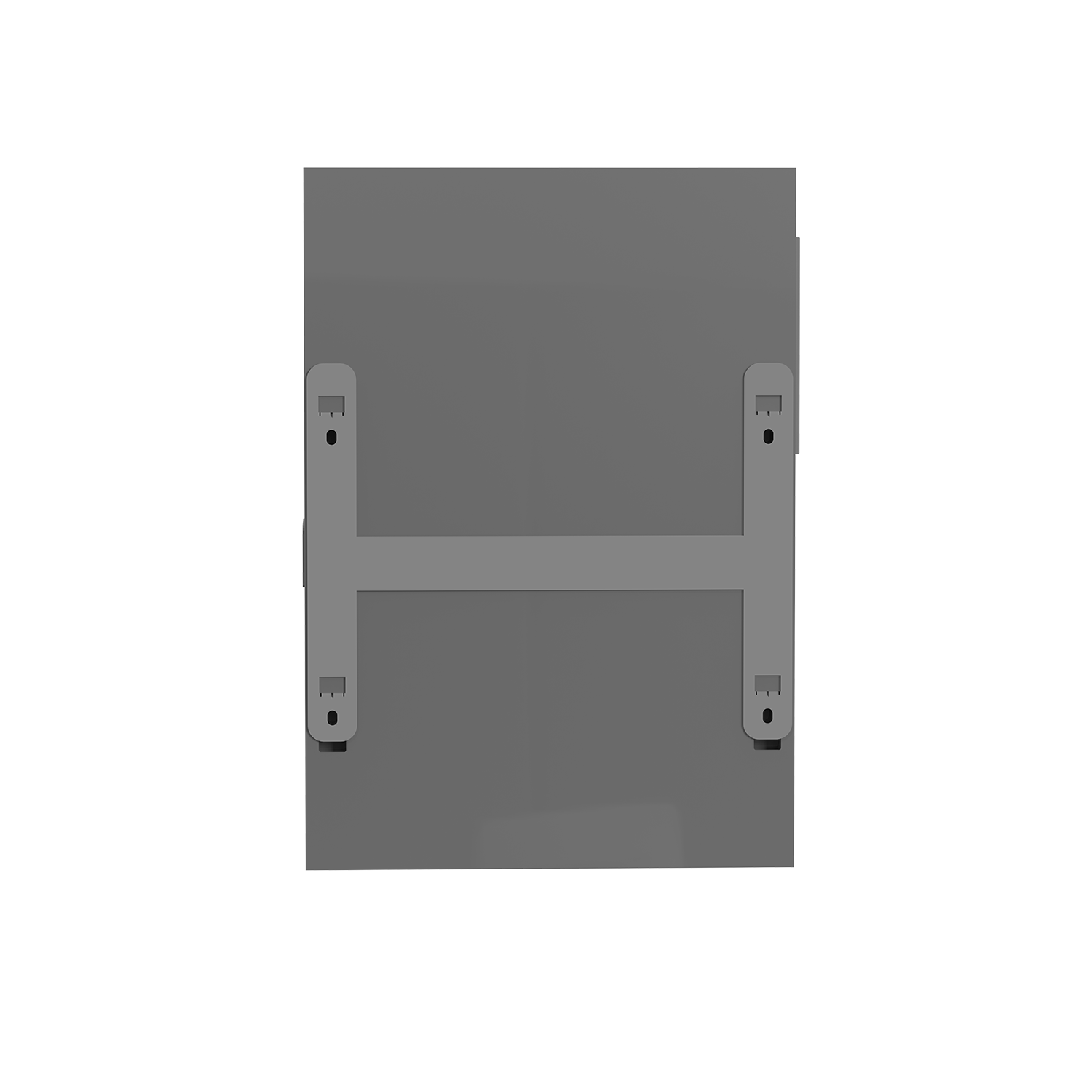

3.Simple design, fast debugMultiple mounting options, easy install.
4.Wide inverter compatibility.
5.Remote management for higher efficiency.
6.Remote diagnosis & OTA upgrade.
7.Low resistance for consistent discharge.
8.High capacity with rate charge/discharg.
Description
| Product Model | LV-ONE1OL25 | LV-ONE11L36 |
| Rated Voltage | 25.6V | |
| Nominal Energy | 2.56kWh | 3.84kWh |
| Operating Voltage Range | 22.4V~28.4V | |
| Standard Charge Voltage | 28.4V | |
| Discharge Cut-Off Voltage | 22.4V | |
| Rated Charge/Discharge Current | 0.5C | |
| Max. Discharge Current | 100A | |
| Nominal Capacity | 100A | 150A |
| Communication Interface | USB (Battery Upper) | |
| AC Input Voltage | 220/230/240VAC | |
| AC Rated Frequency | 50/60Hz (Adaptive) | |
| Output Rated Power | 2500W | 3600W |
| Peak Power | 5000VA | |
| AC Rated Voltage | 220/230/240VAC+5% | |
| Output Frequency | 50/60Hz+0.1% | |
| Max. PV Open Circuit Voltage | 500VDC | |
| MPPT Range | 40-450VDC | |
| Max. PV Input Current | 18A | |
| Max. AC Input Current | 20A | |
| Max. AC Output Current | 11A | 15.6A |
| Display | LCD can display operation mode/load/input/output, etc | |
| Operating Temperature Range | Charging: 0~55°C/Discharging: – 10~55℃ | |
| Operating Humidity Range | 5-85%RH | |
| Depth Of Discharge | 80-90% | |
| Cycle Life | 25+2℃/0.2C/80%25000 | |
| Protection Grade | IP20 | |
| Dimension | 620*450*163mm | 650*450*193mm |
| Net Weight | ≤40kg | $45kg |
| Parallel CAN | Stand-alone use | |
| Cetification | Cell: ROHS/UN38.3/MSDS | |
