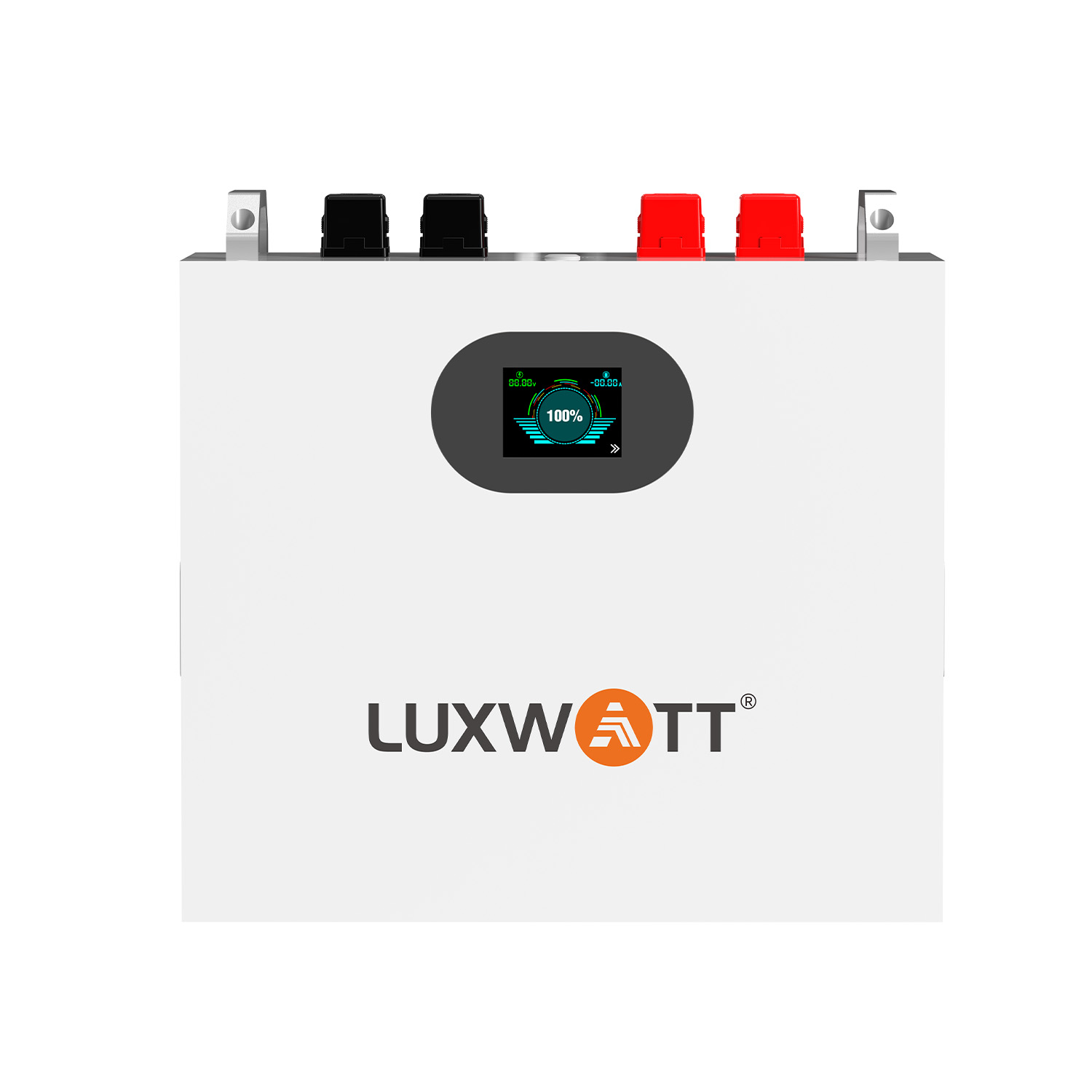

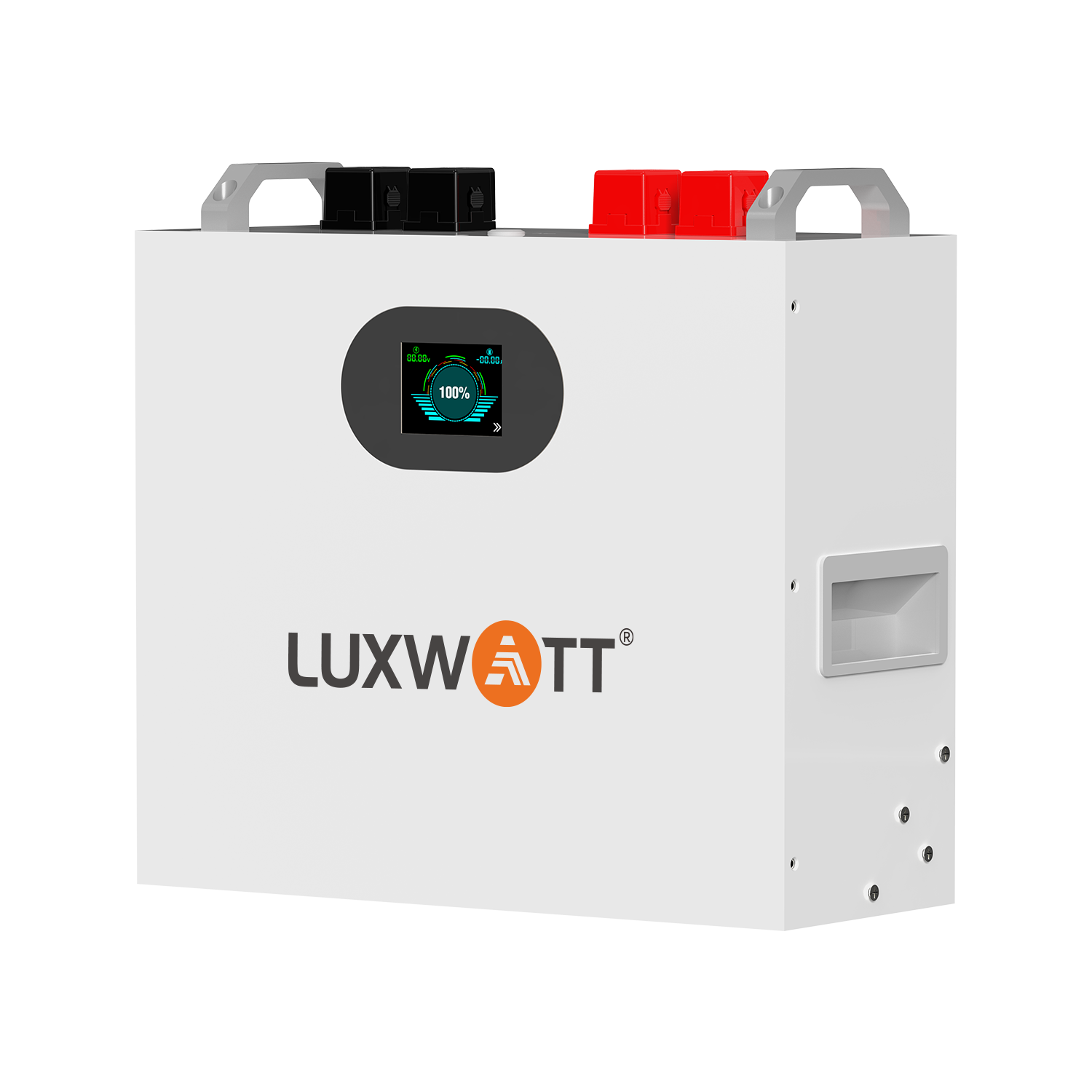

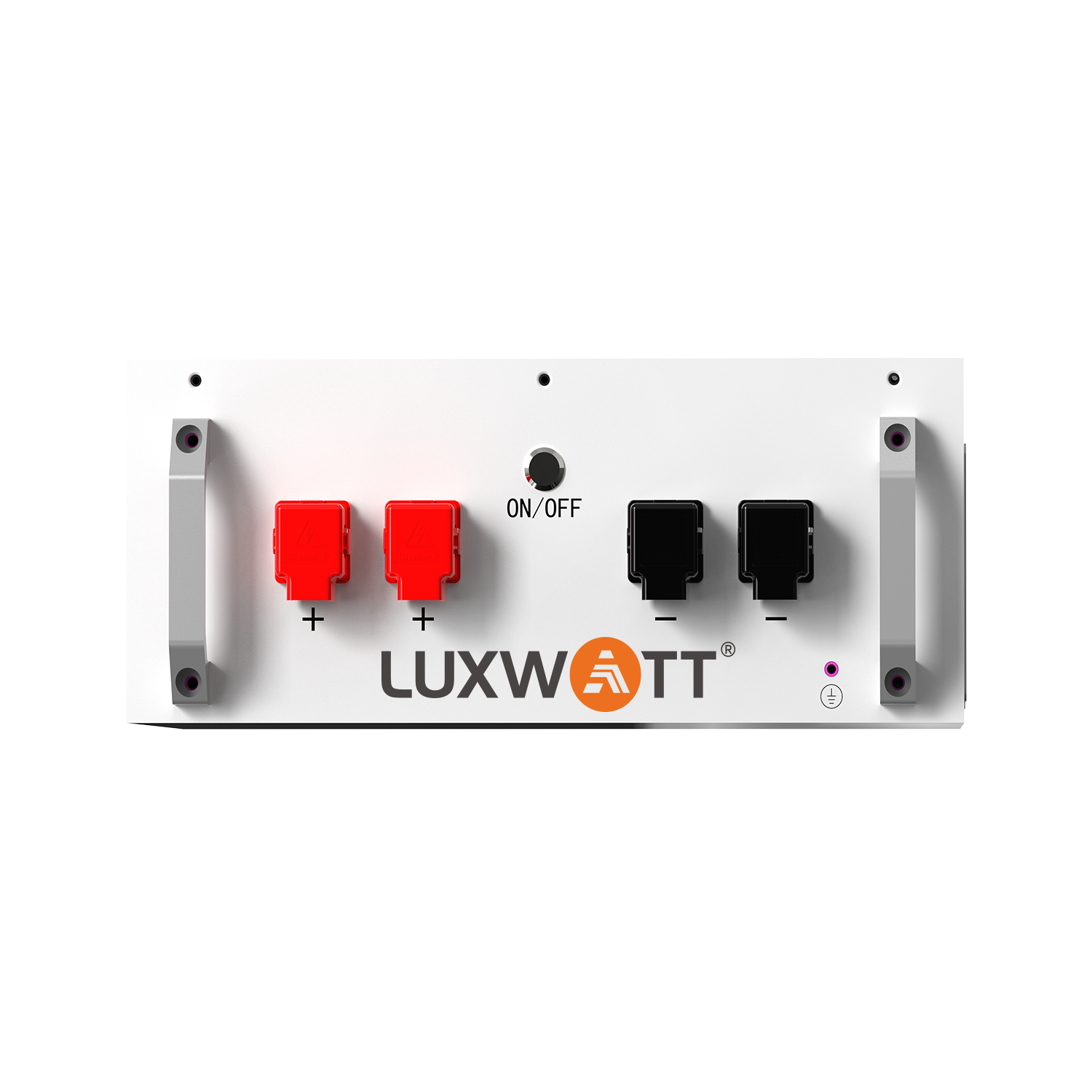

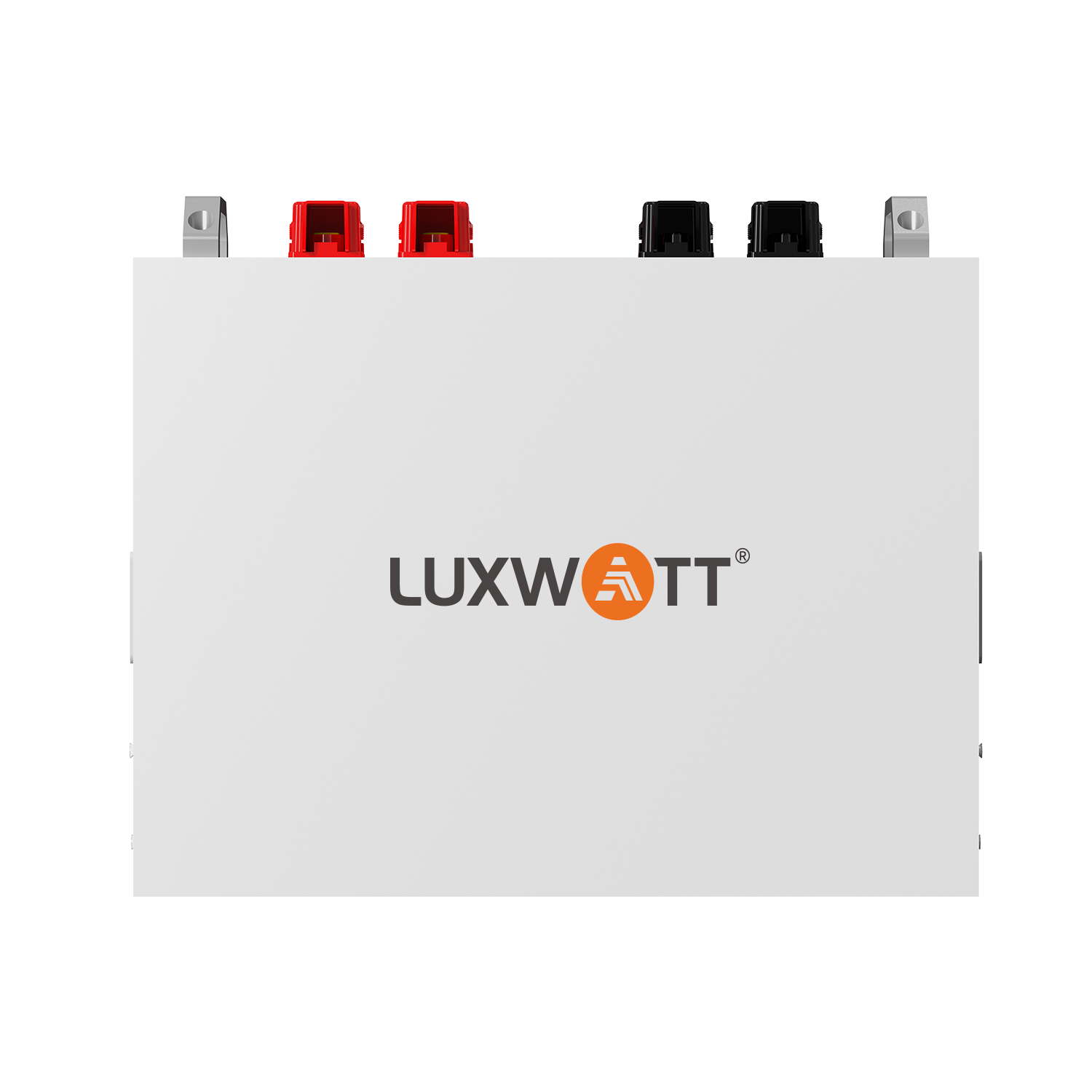

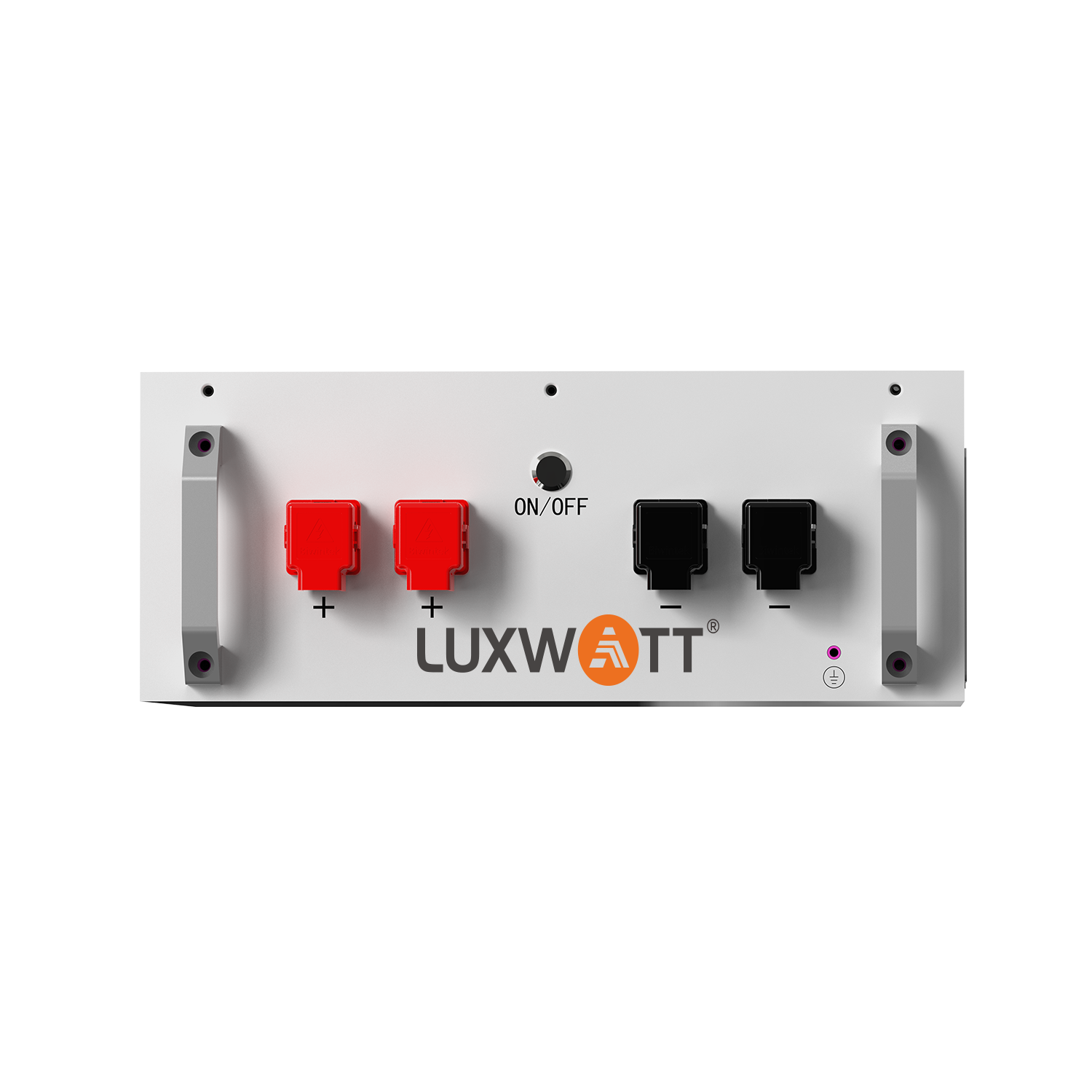

ES-BOX38S 2.56kWh
ES-BOX38S 2.56kWh
Safe & stable:
1. Built in BMS with multiple protections;
2. Real time monitoring of data through communication function.
Flexible & convenient:
1. Simple design and fast debugging speed;
2. Support multiple installation schemes, easy to install.
3.Compatible with multi-brand inverters.
Smart operation & management:
1.Remote O&M to improve operational efficiency;
2.Remote diagnosis OTA upgrade.
High performance:
1. High consistency. Low internal resistance ensures good consistency in battery discharge;
2. High capacity. Rate charge and discharge.
Description
| Product Model | ES-BOX38S |
| Nominal Energy | 2.56kWh |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Cell Type | LFP |
| Standard Charge Voltage | 28.4V |
| Max.Charge/Discharge Current | 100A |
| Discharge Cut-Off Voltage | 22.4V |
| Parallel Function | Support 4 Units In Parallels |
| Communication Interface | RS485,USB,CAN |
| Cycle Life | >8000 Cycles(25℃±2℃,0.5C,80%DOD@65%EOL) |
| Charge Temperature Range | 0~55°C |
| Discharge Temperature Range | -20~55℃ |
| Certification | Pack: CEI 0-21/CE/IEC 62619/UL1973 by Intertek/MSDS/UN38.3 Cell: UL1642/IEC 62619/CE/EMC/ROHS/MSDS/UN38.3 |
| Dimension | 330*380*150mm (Excluding Wall-Mounted Brackets) |
| Net Weight | 23Kg |
| Installation Method | Wall-Mounted |
| Warranty | 5 Years(Under Warranty Terms) |
| Energy Throughput” | 5.6MWh |
| Display | 2.8″ LCD Touch Screen |
| Protection Grade | IP20 |
