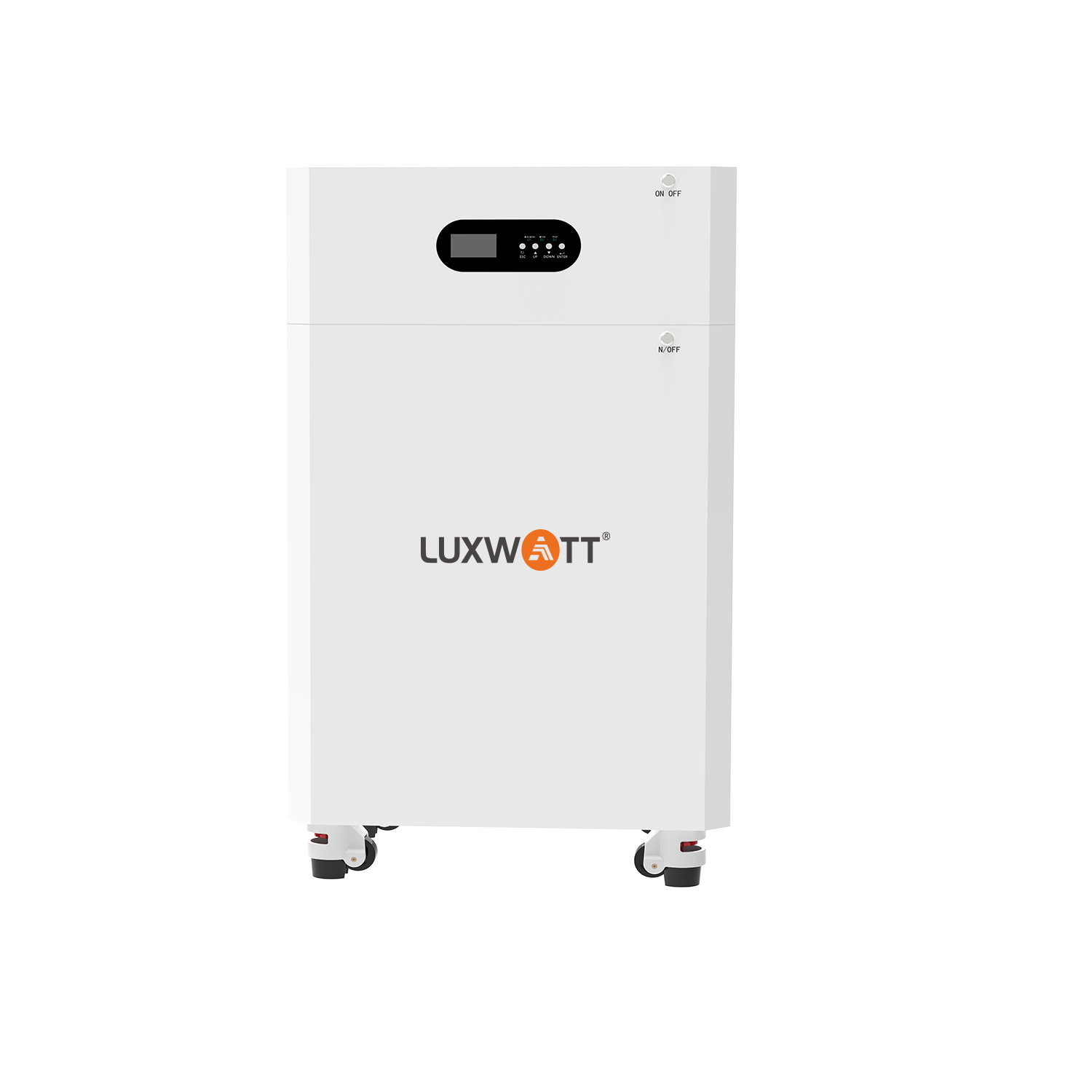

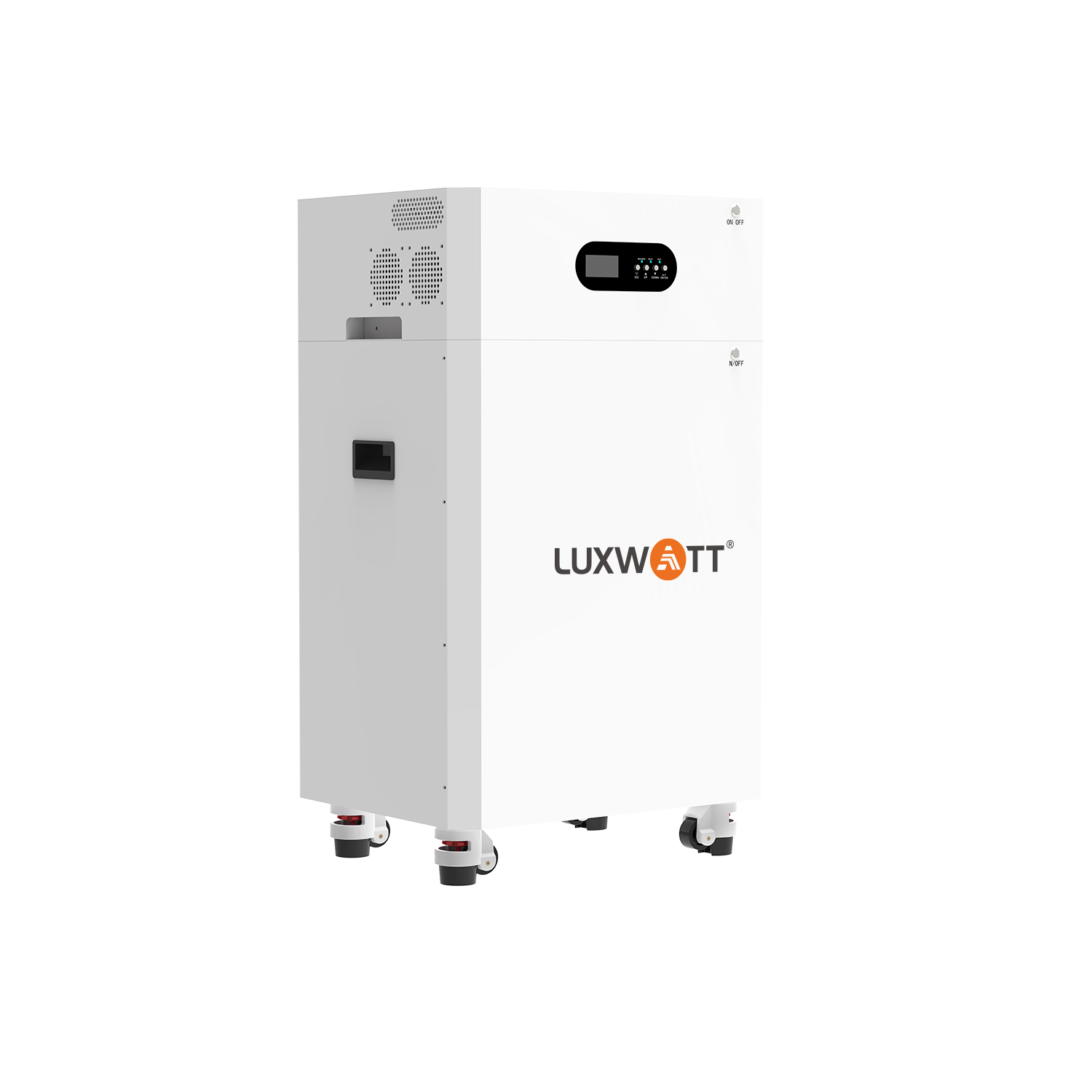

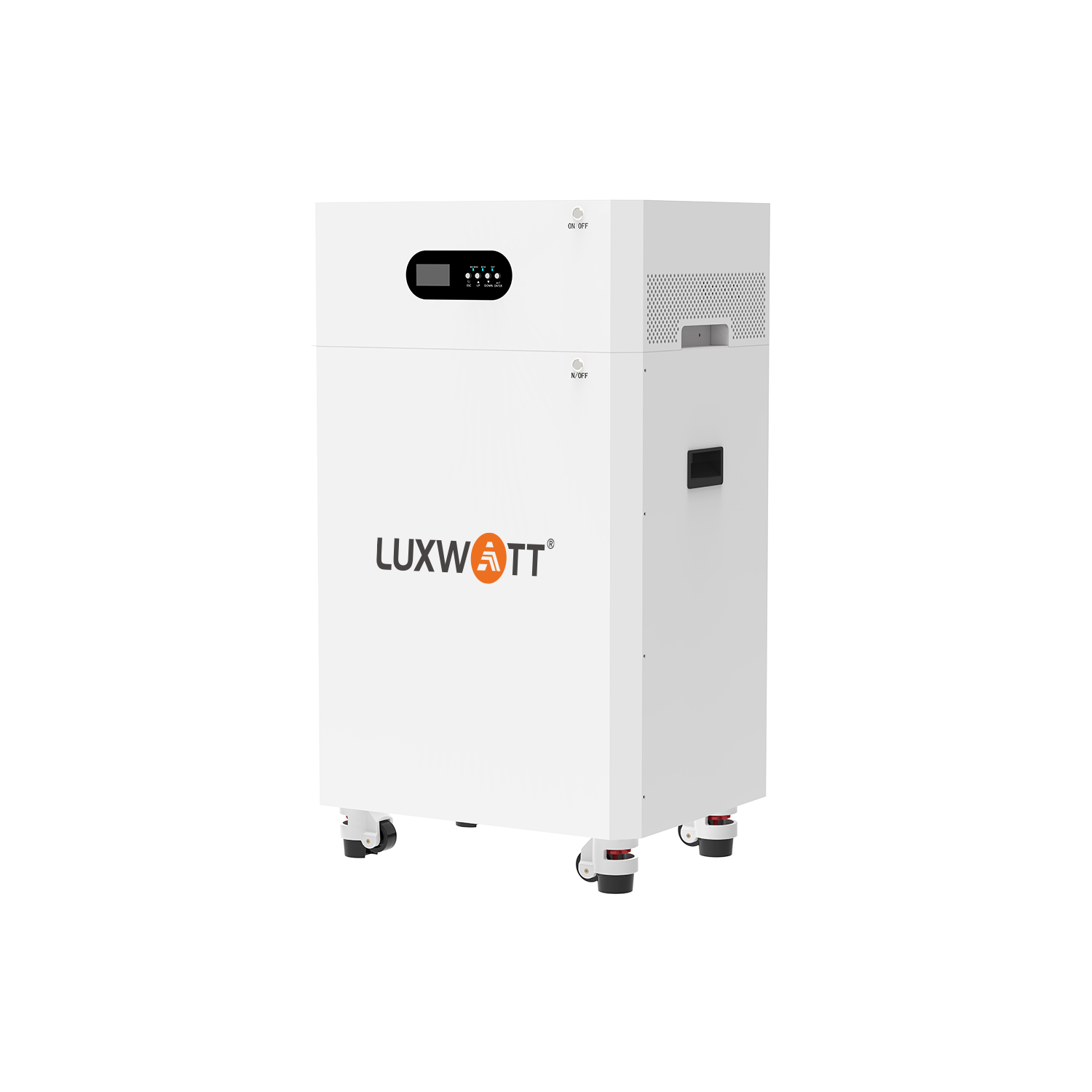

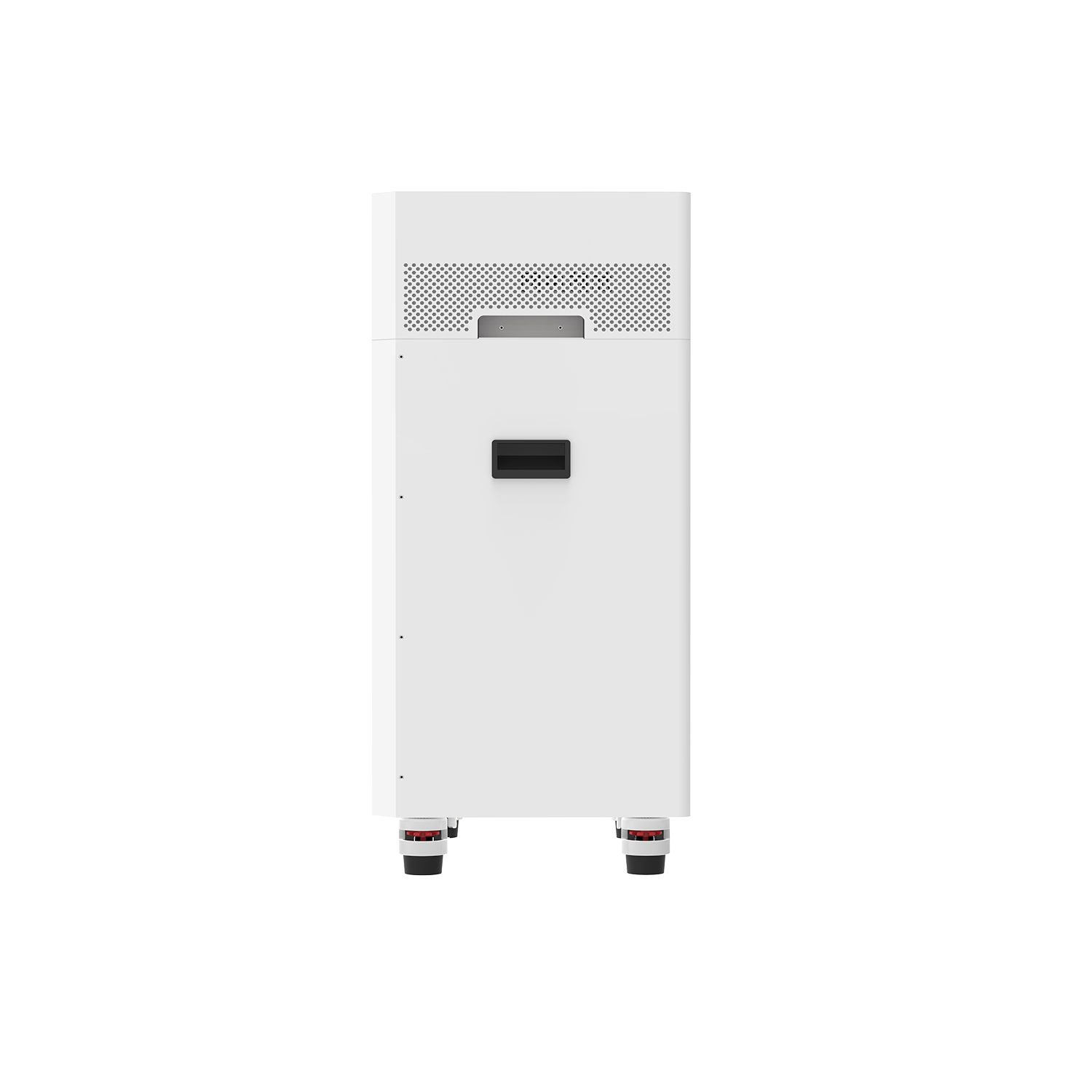

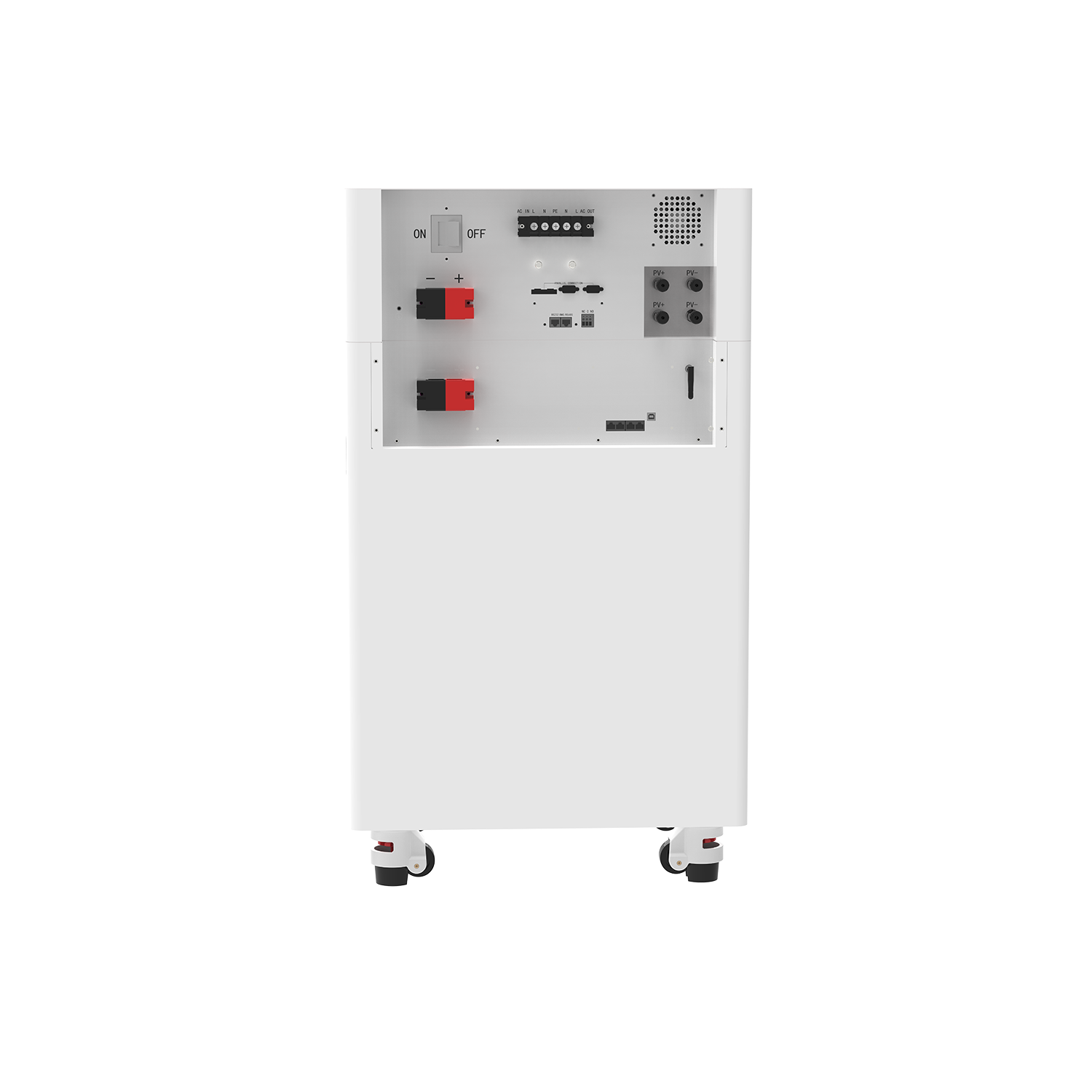

LV-ONE60L80 All-in-one 16.08kWh
LV-ONE60L80 All-in-one 16.08kWh
1.BMS with multi-protection.
2.Real-time monitoring via comms.
3.Simple design, fast debugMultiple mounting options, easy install.
4.Wide inverter compatibility.
5.Remote management for higher efficiency.
6.Remote diagnosis & OTA upgrade.
7.Low resistance for consistent discharge.
8.High capacity with rate charge/discharg.
Description
| Product Model | LV-ONE-60L80 |
| Nominal Energy | 16.08kWh |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 314Ah |
| Cell Type | LFP |
| Standard Charge Voltage | 56.8V |
| Max.Charge/Discharge Current | 200A |
| Discharge Cut-Off Voltage | 44.8V |
| Charge Temperature Range | 0-55°℃ |
| Discharge Temperature Range | -10-55°C |
| Communication Interface | USB/RS485/CAN |
| Cycle Life | ≥10000 Cycles (25°C±2℃, 0.2C/0.2C, 80%DOD@65%EOL) |
| Standard configuration | Circuit Breaker |
| Option | WIFI |
| Parallel Function | Single battery |
| Rated Input Voltage | 220/230/240VAC |
| Rated Output Voltage | 220/230/240VAC±5% |
| Frequency | 50Hz/60Hz(Adaptive) |
| Rated Capacity | 8600W |
| Peak Power | 17200VA |
| PV Charging Mode | Dual-channel MPPT |
| Max. PV Input Power | 2×5500W |
| Max. PV Input Voltage | 500Vdc |
| MPPT Voltage Range | 12V-48V |
| MPPT Tracking Range | 90-500Vdc |
| Max. Input Power | 600W x2 |
| Max. PV Input Current | 18A/18A |
| Max. Charging Current | 150A |
| Display | LCD Display |
| Single Battery Module Size | 600*449*938mm |
| Weight of a single battery module | 168.5kg |
| Certification | ROHS/UN38.3/MSDS |
