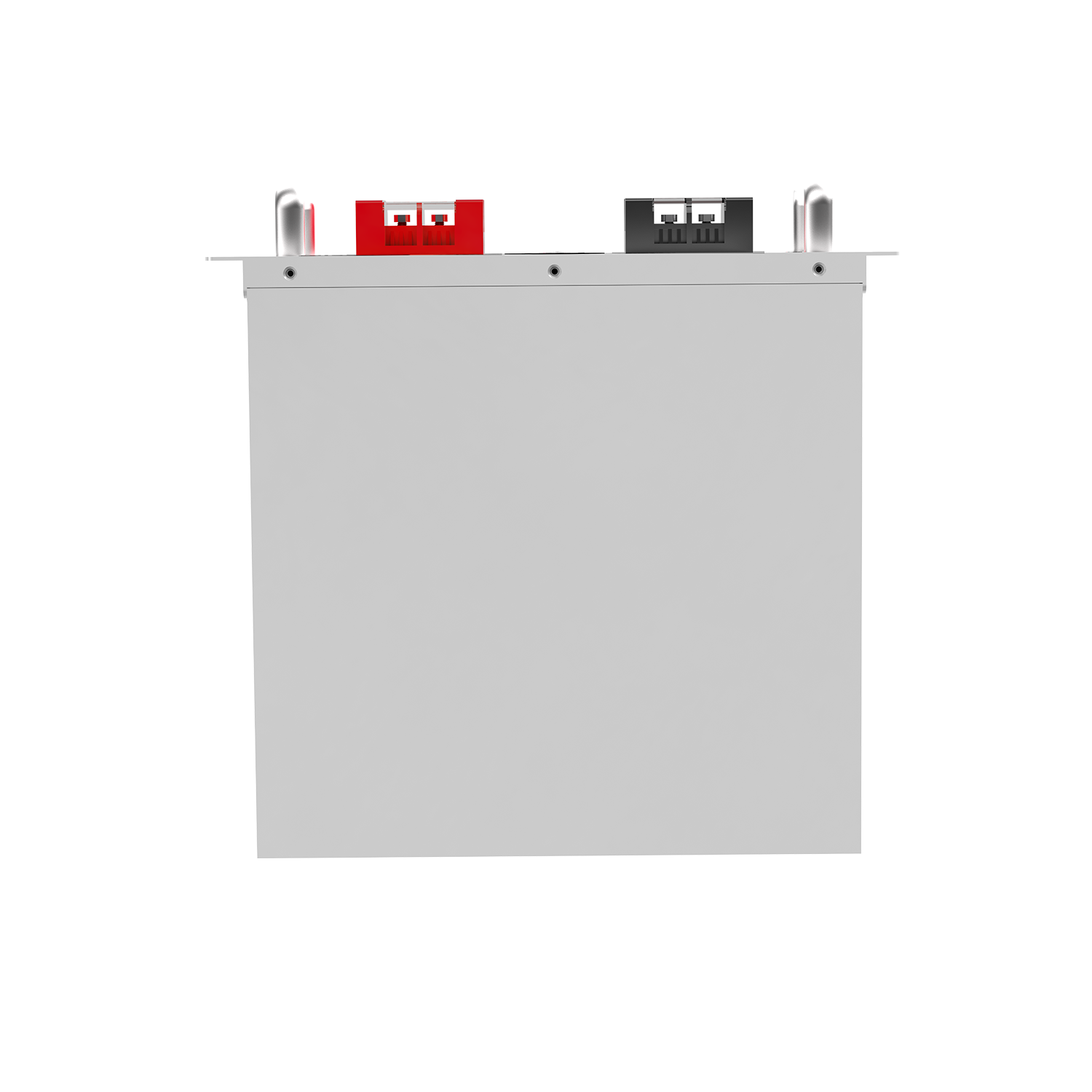

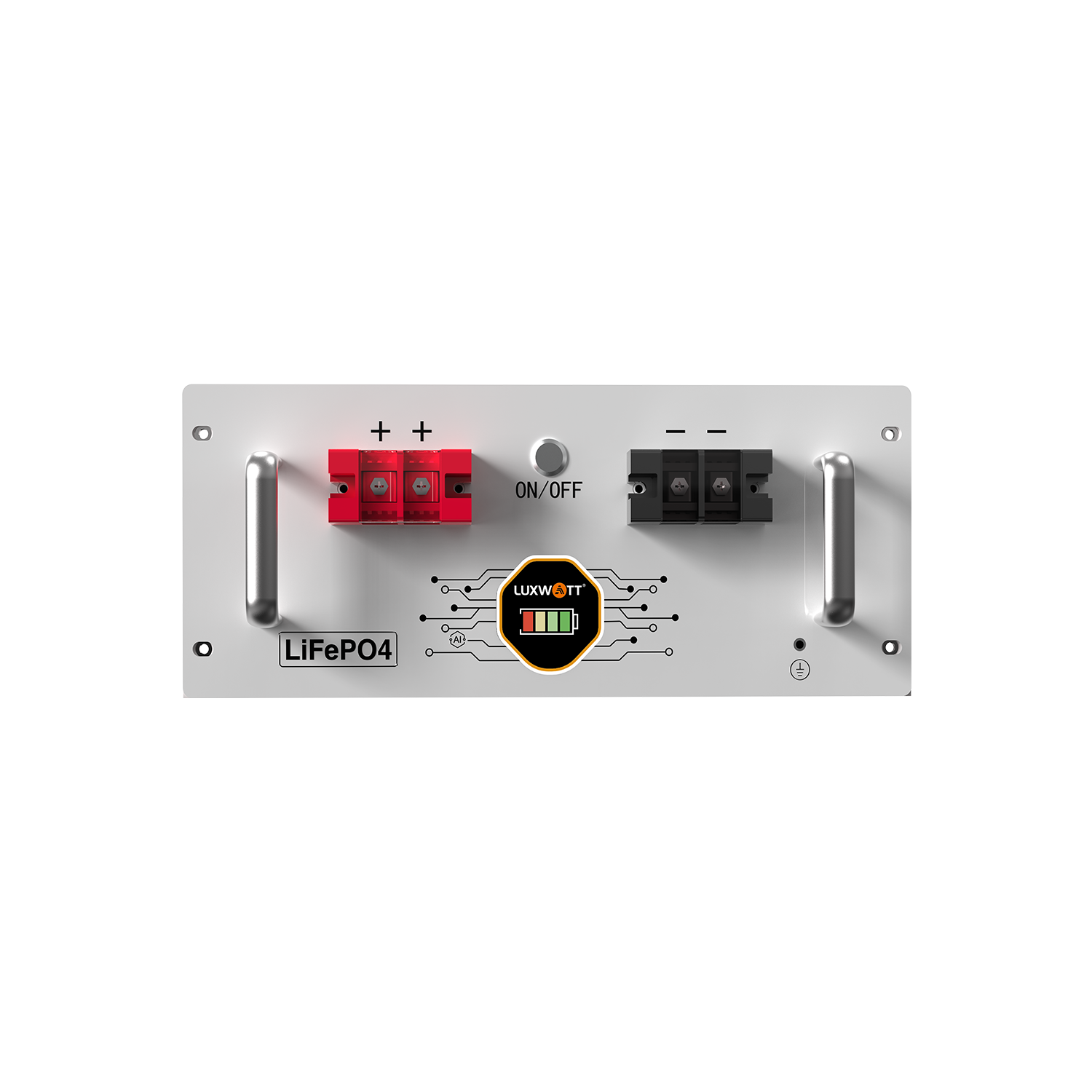

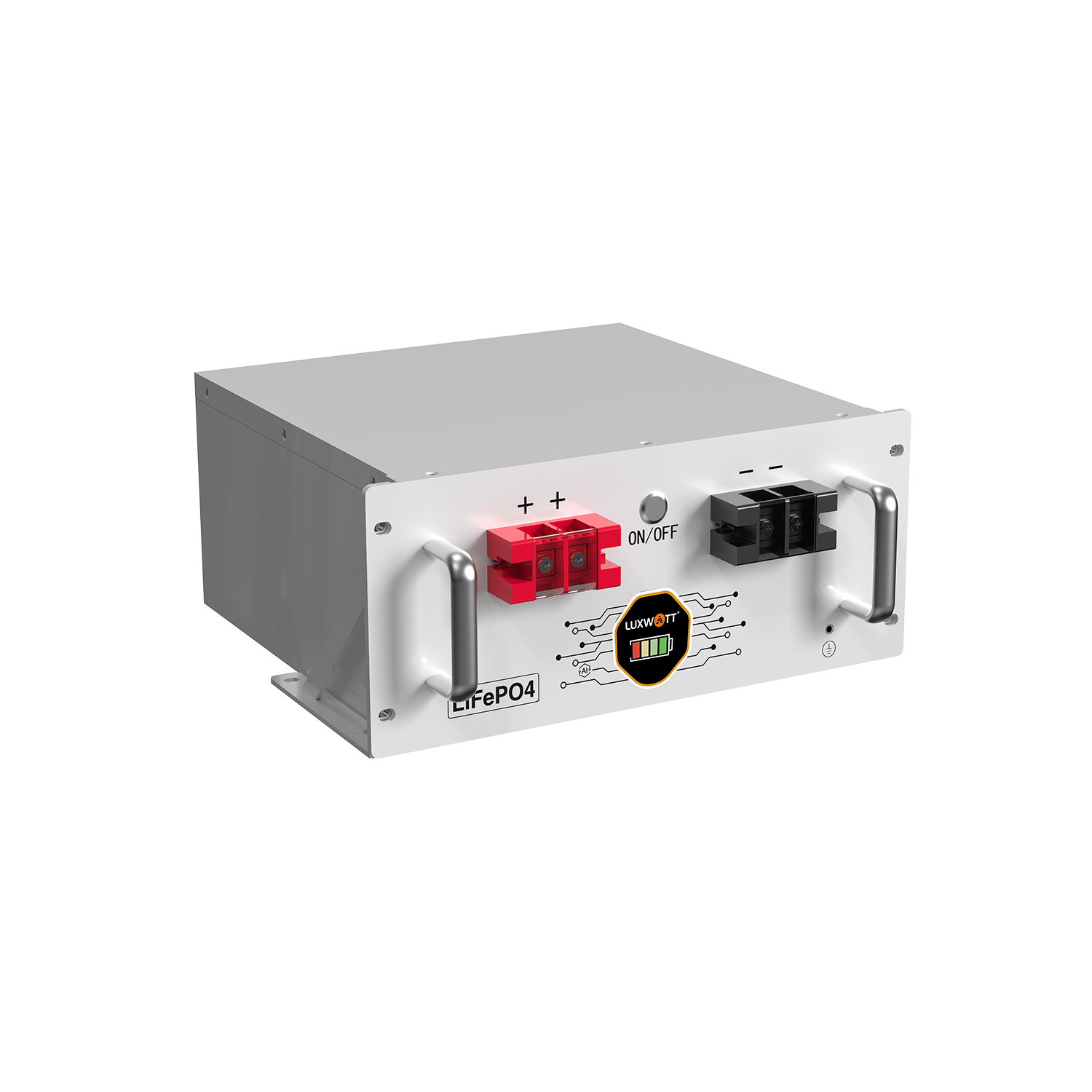

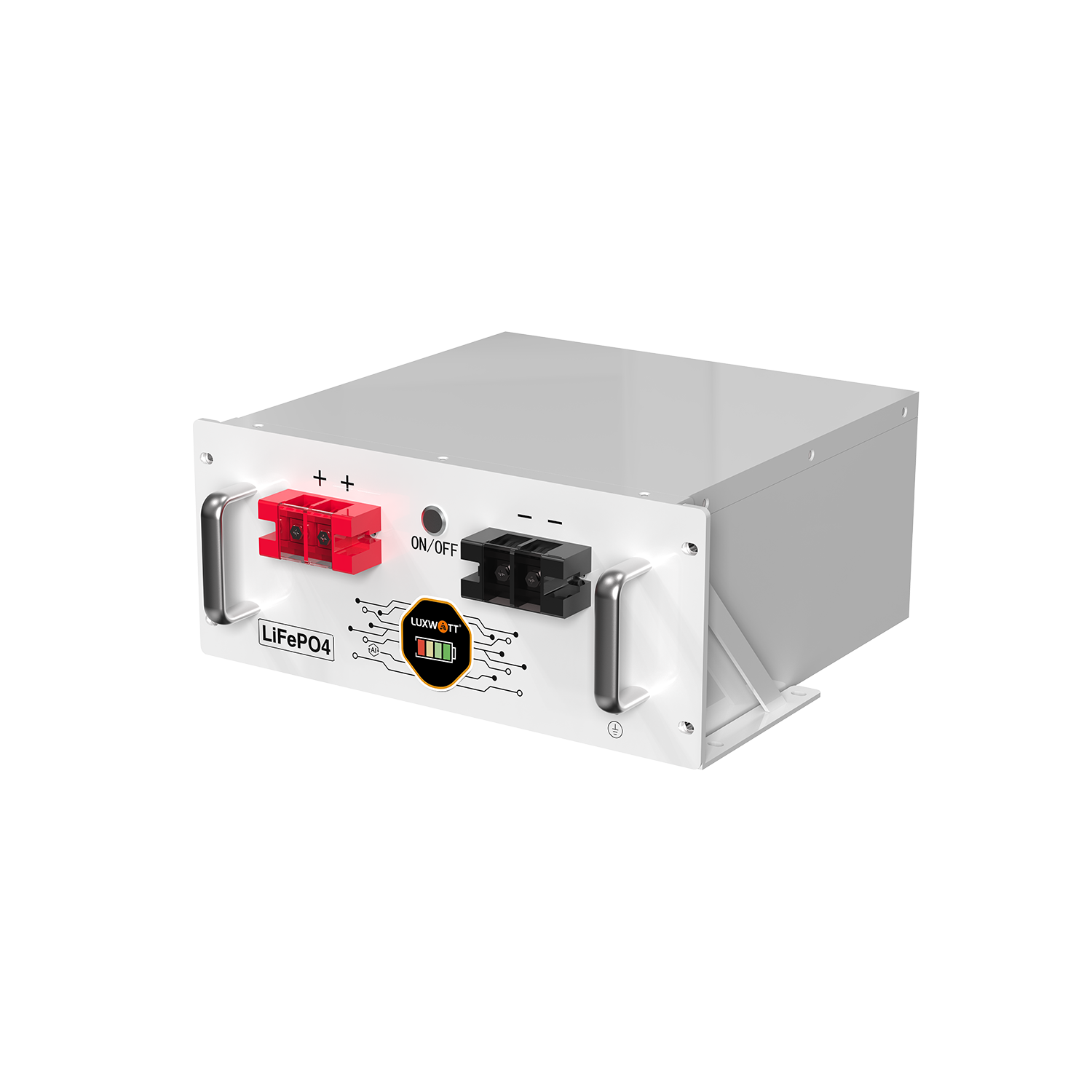

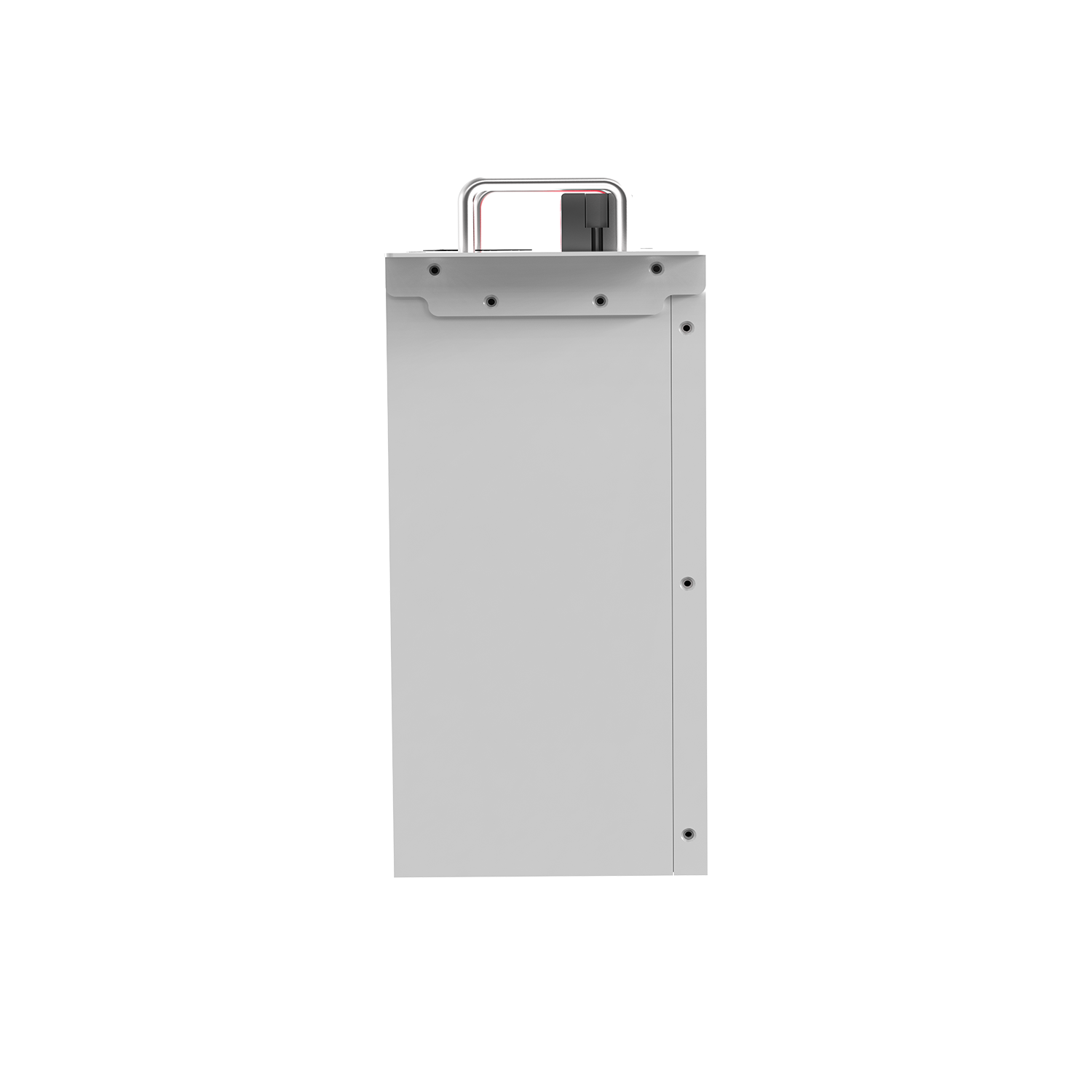

ES-BOX40S-B 2.56kWh

Home » All Products » ES-BOX40S-B 2.56kWh

ES-BOX40S-B 2.56kWh

Home » All Products » ES-BOX40S-B 2.56kWh

Safe & stable:
1. Built in BMS with multiple protections.
2. Real time monitoring of data through communication function.
Flexible & convenient:
1. Simple design and fast debugging speed.
2. Support multiple installation schemes, easy to install.
3.Compatible with multi-brand inverters.
4.Stackable and flexible deployment.
Smart operation & management:
1.Remote O&M to improve operational efficiency.
2.Remote diagnosis OTA upgrade.
High performance:
1. High consistency. Low internal resistance ensures good consistency in battery discharge.
2. High capacity. Rate charge and discharge.

Description

Product Model ES-BOX40S-C ES-BOX40S-B ES-BOX40S PLUS ES-BOX40S PLUS+
Nominal Energy 2.56kWh 3kWh 5.12kWh 6kWh
Nominal Voltage 25.6V
Equalized Charge Voltage 27.2V
Discharge Cut-Off Voltage 22-22.4V
Float Charge Voltage 28V
Bulk Charge Voltage 28.4V
Max. Charge Current 100A
Max. Discharge Current 100A
Weight =20kg =22kg =35kg =43kg
Dimensions L*W*H (mm) 353*320*125 325*320*150 400*337*155 350*353*235
