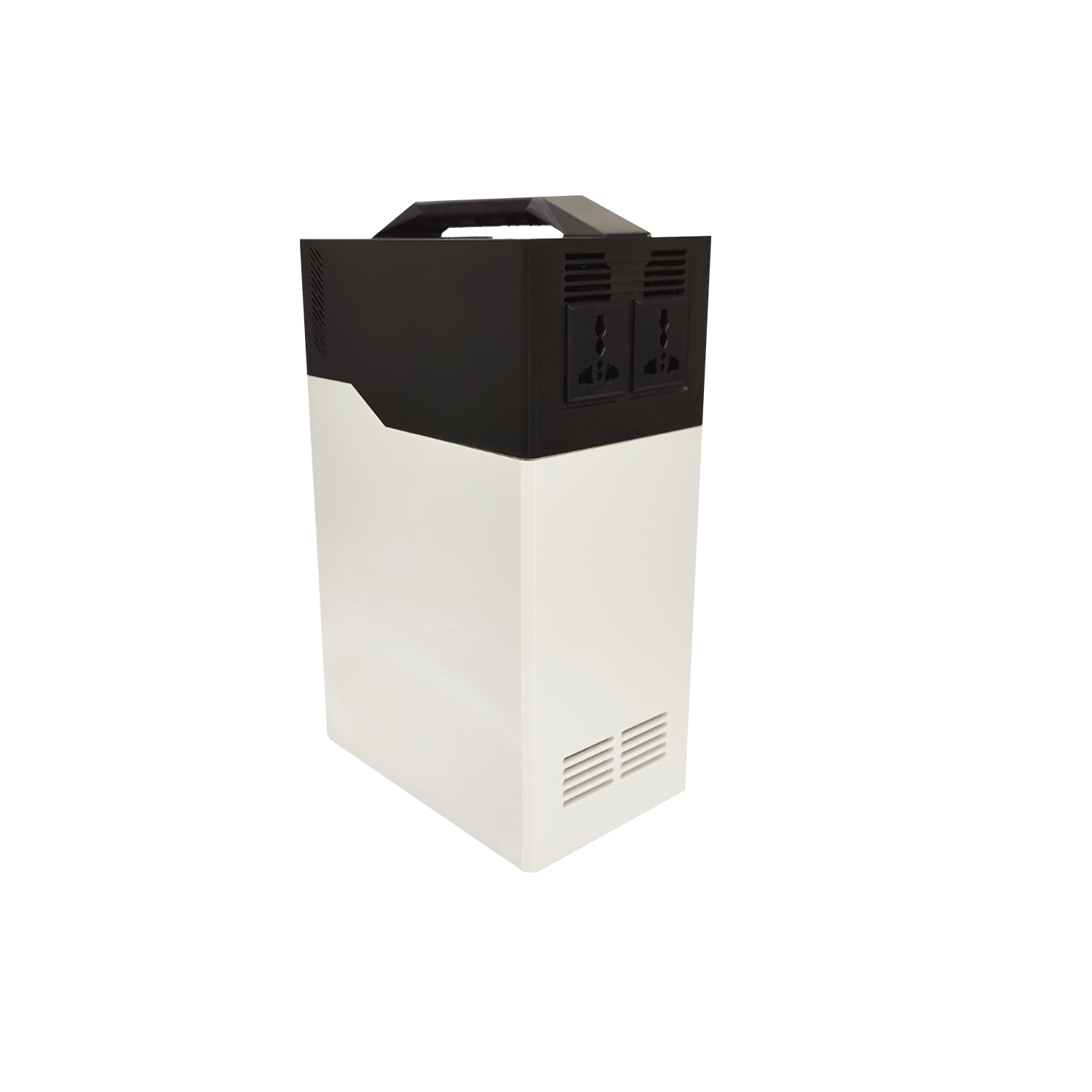

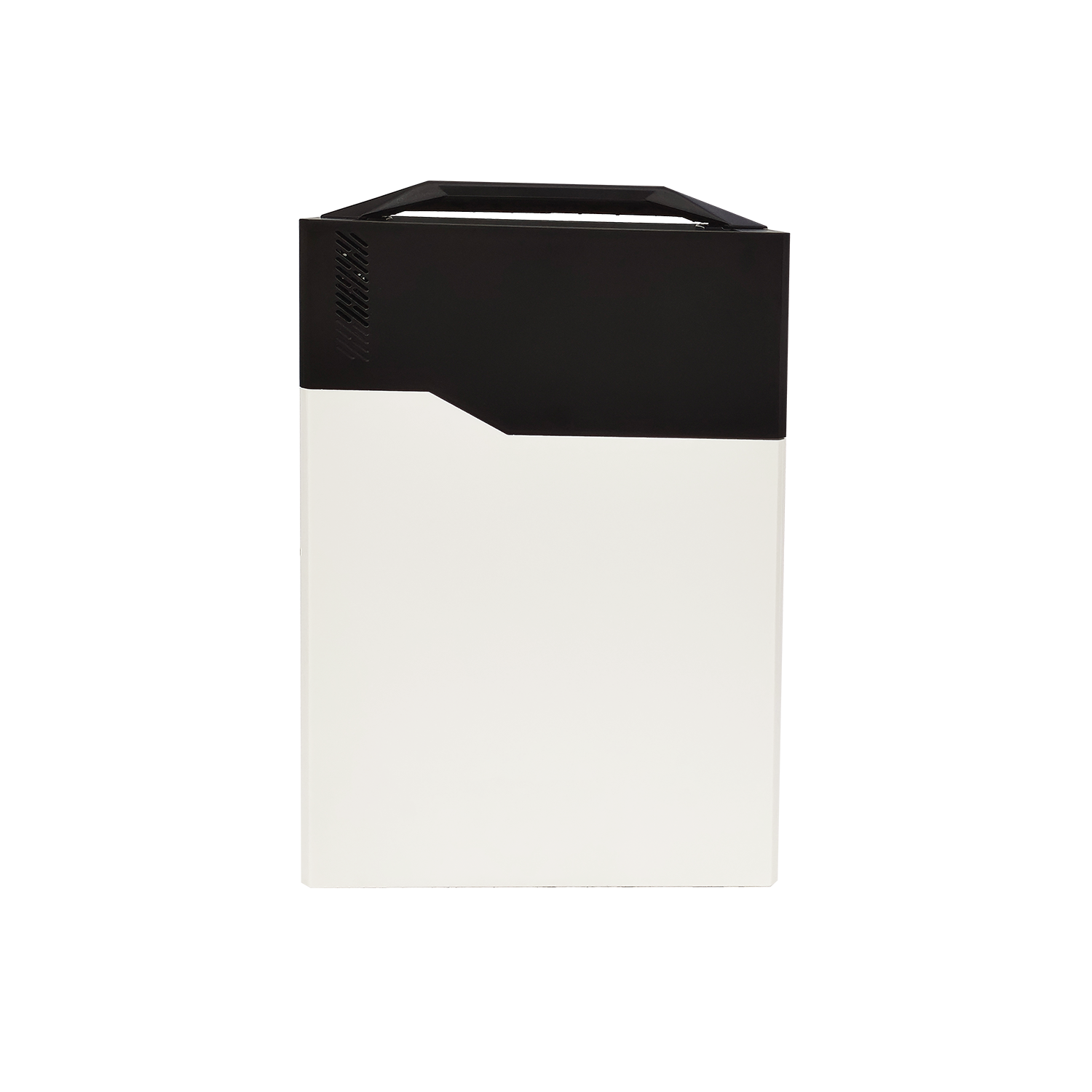

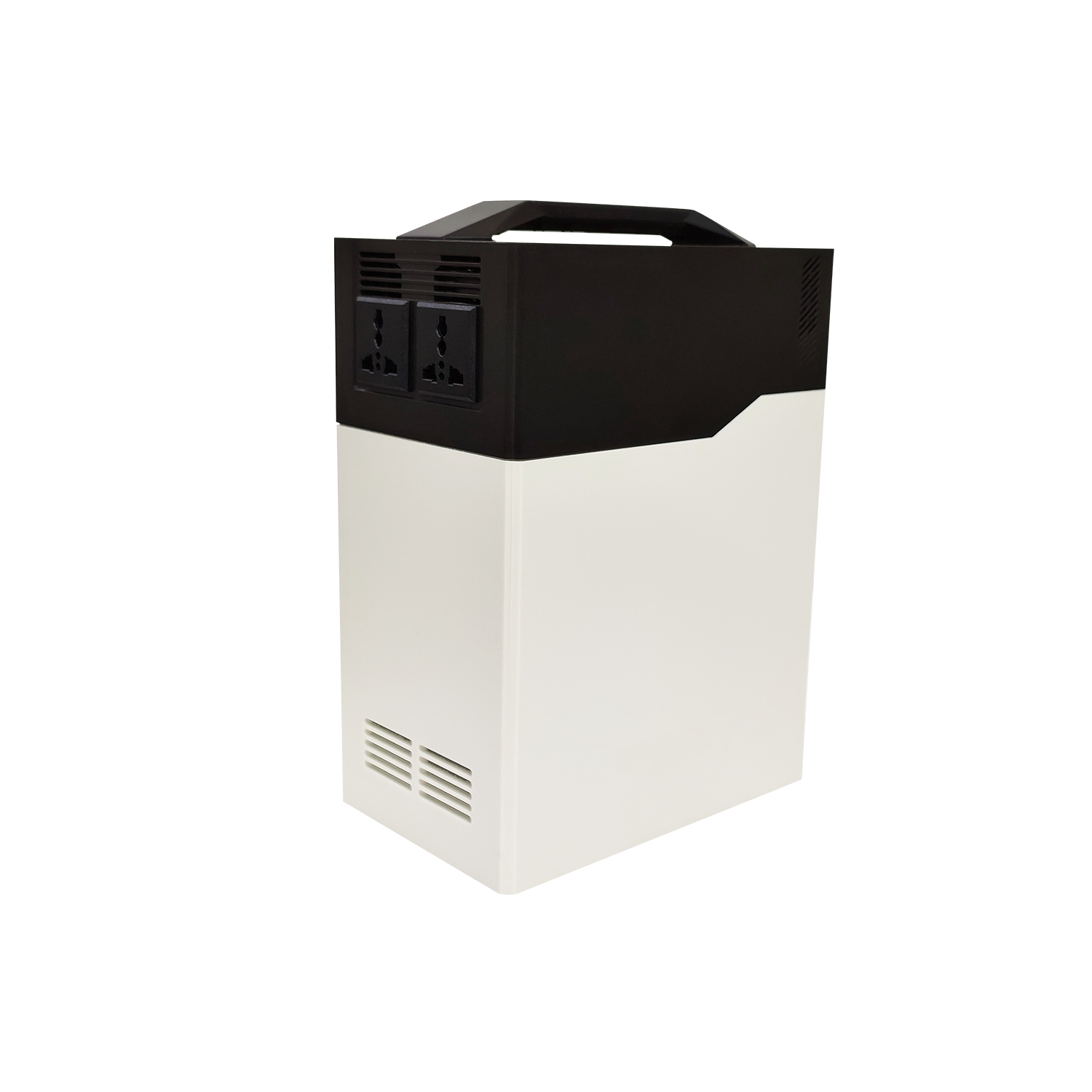

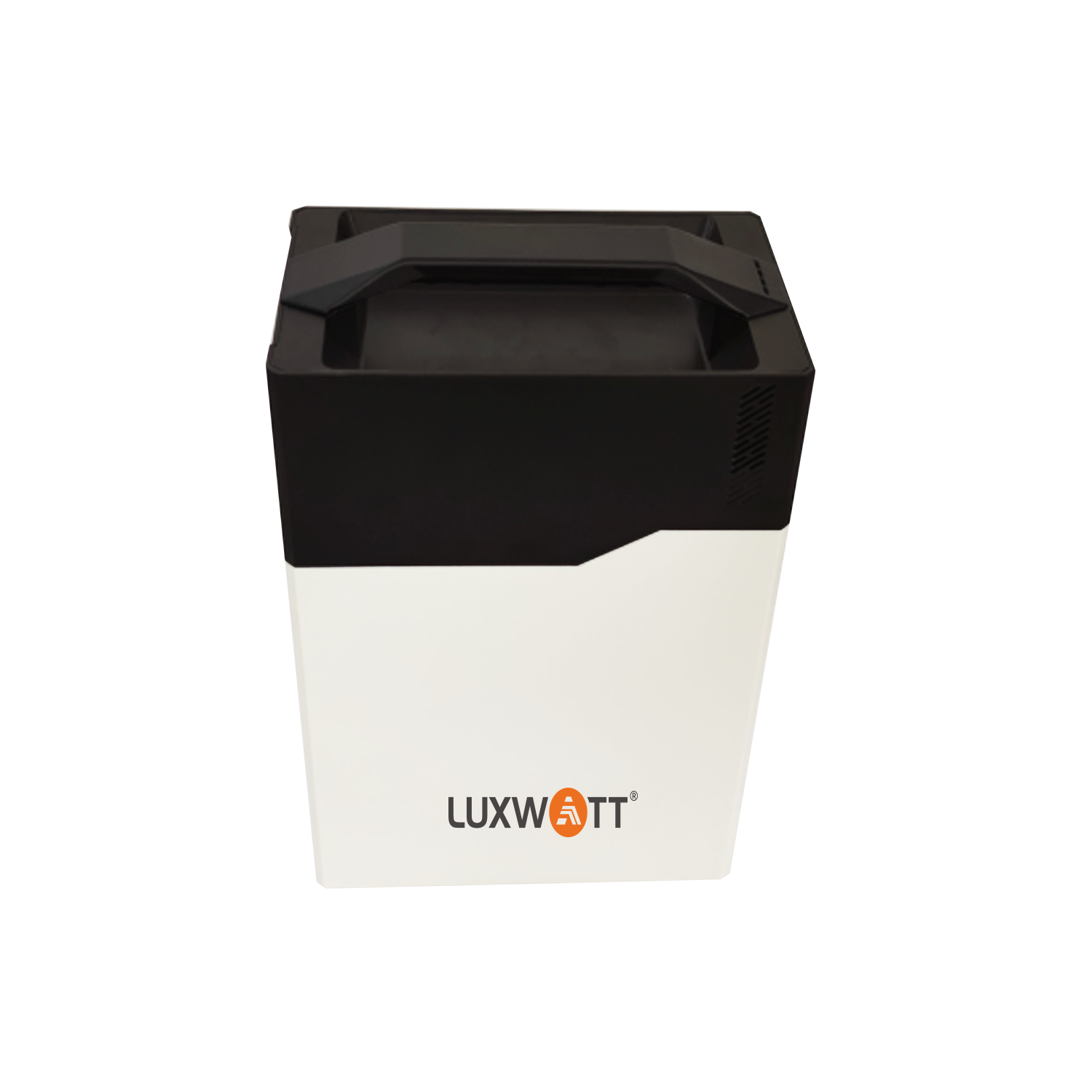

JLS-SH1000 All-in-one 1kWh
JLS-SH1000 All-in-one 1kWh
1.BMS with multi-protection.
2.Real-time monitoring via comms.
3.Simple design, fast debugMultiple mounting options, easy install.
4.Wide inverter compatibility.
5.Remote management for higher efficiency.
6.Remote diagnosis & OTA upgrade.
7.Low resistance for consistent discharge.
8.High capacity with rate charge/discharg.
Description
| Product Model | JLS-SH1000 |
| Nominal Energy | 1kWh |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 314Ah |
| Charge Temperature Range | 0-55℃ |
| Discharge Temperature Range | -10-55°℃ |
| Cycle Life | >2000 Cycles(25℃±2°C, 0.35C, 80%DOD@65%EOL) |
| Standard Charge Voltage | IP20 |
| Rated AC Voltage | 220V |
| Rated AC Frequency | 50Hz |
| Max. AC Output Power | 300W |
| Max. AC Peak Output Power | 600W |
| Max. Input Power | 200W |
| PV Charging Voltage Range | 12V-60V |
| USB Output | USB1 output: QC3.0, support QC. AFC and FCP5V3A/9V2A/12V1.5A |
| USB2 output: QC3.0, support QC. AFC and FCP5V3A/9V2A/12V1.5A | |
| Type-C output: PD18W, support PD. QC. AFC. FCP 5V3A/9V2A/12V1.5A | |
| Display | LED light |
| Dimension | 310*142*219mm |
| Net Weight | 10KG |
| Certification | ROHS/UN38.3/MSDS |
| Warranty | 3 Years(Under Warranty Terms) |
